H-Frame Single Width Mobile Scaffold with Steel Scissor

SKU: SMT200
Levels 2m Platform Height
Length 2.4m Long
Subtotal: $0.00
Icon_welded_strong
icon-colour-coded
icon-outriggers-toeboards
icon-made_in_nz
icon-compliance_1576
icon-450kg_load

H-Frame Mobile Scaffold is a heavy-duty NZ-made system built for professionals. It features extra-thick aluminium frame walls, fully welded construction, and steel scissor bracing for fast, secure assembly. Available in multiple pack sizes and individual components for easy expansion. Outriggers and toeboards are included where required, and all packs come with a scaffold ladder, the safest way to climb. H-Frame exceeds AS/NZS 1576.1 standards.

Features & Benefits
  • NZ's Versatile Large Mobile Scaffold Range
  • Fully Welded Lightweight and high tensile aluminium - strong, lightweight & robust
  • 450kg SWL
  • Extra-thick aluminium frame walls for added strength and durability
  • Scaffold ladder included; the safest way to climb a mobile scaffold.
  • Includes all components to be compliant. Brace, Toeboards
  • Simple colour coded componentry - user-friendly assembly
  • Fast and simple assembly
  • Outriggers & Toeboards are included when required for compliance
  • Height adjustable castors
  • Outriggers & Toeboards are included when required for compliance
  • Large 500kg rated, 200mm diameter robust castors - easy to move
  • Very affordable & makes you money - no more scaffold hire bills. Hire out your own scaffold instead!
  • Non-slip birch plywood platforms
  • Adjustable castors - 350mm adjustment
  • 2.4-3.0mL Platform
  • Single Width Platform - 0.8m
  • Steel Scissor Bracing

Downloads

Component List File
Share This Product
  • Description
  • SIZE

The H-Frame Scaffold Range is our original heavy-duty mobile scaffold, built tough for adaptability and long-term durability. Proudly made in New Zealand, this versatile system is trusted by professionals nationwide for industrial and commercial access needs.Constructed with extra-thick aluminium frame walls and fully welded joints, H-Frame delivers excellent strength and stability on site. Galvanised steel scissor bracing provides strong structural support and installs quickly, making setup efficient and secure without the need for complex assembly.Large 200mm diameter castors allow for smooth mobility and feature 350mm of adjustable height, ensuring stability on uneven surfaces. The system is available in multiple pack sizes and individual components, allowing you to expand or customise your scaffold as needed.All packs come with a scaffold ladder, the safest way to climb a mobile scaffold, and include outriggers and toeboards where required for full AS/NZS 1576.1 compliance.For a reliable, heavy-duty scaffold that’s built to perform, the H-Frame Range stands a step above the rest.

Code Description Platform Height Length

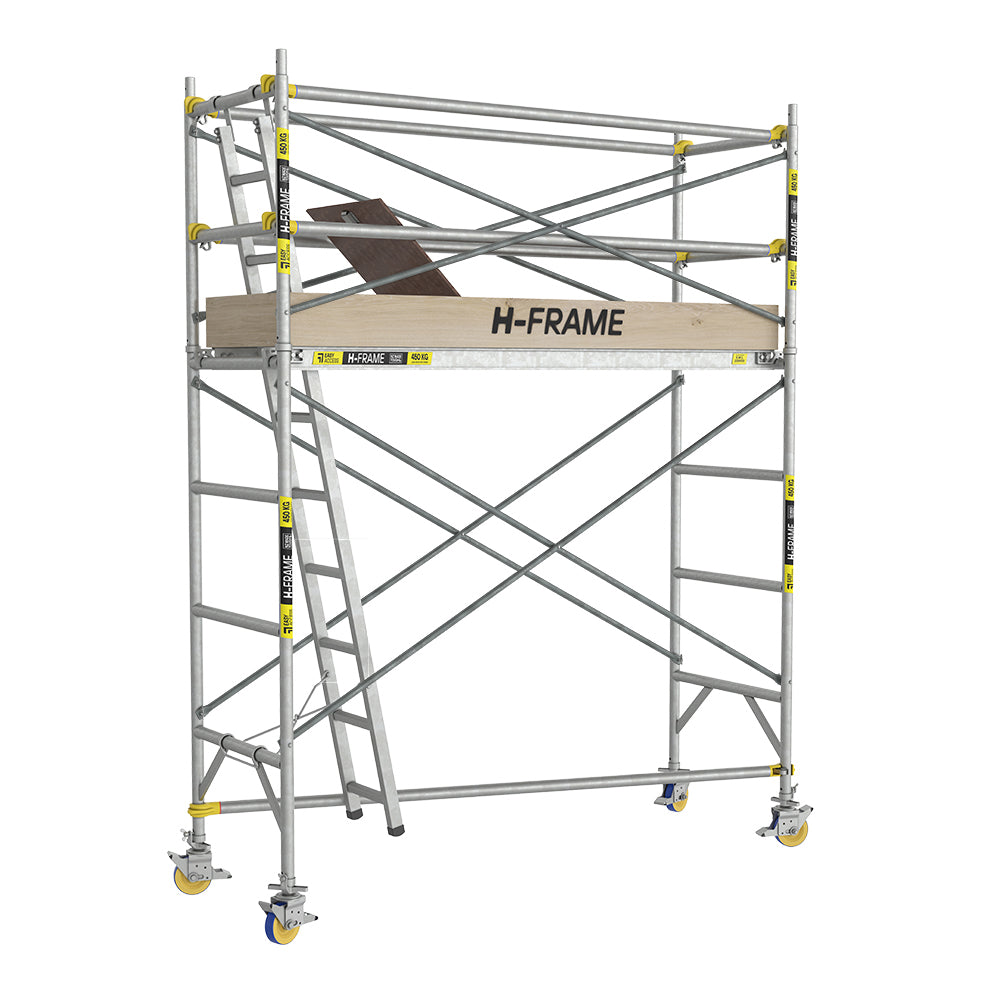

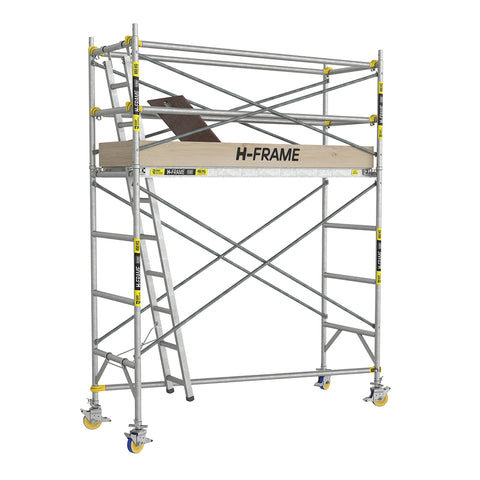

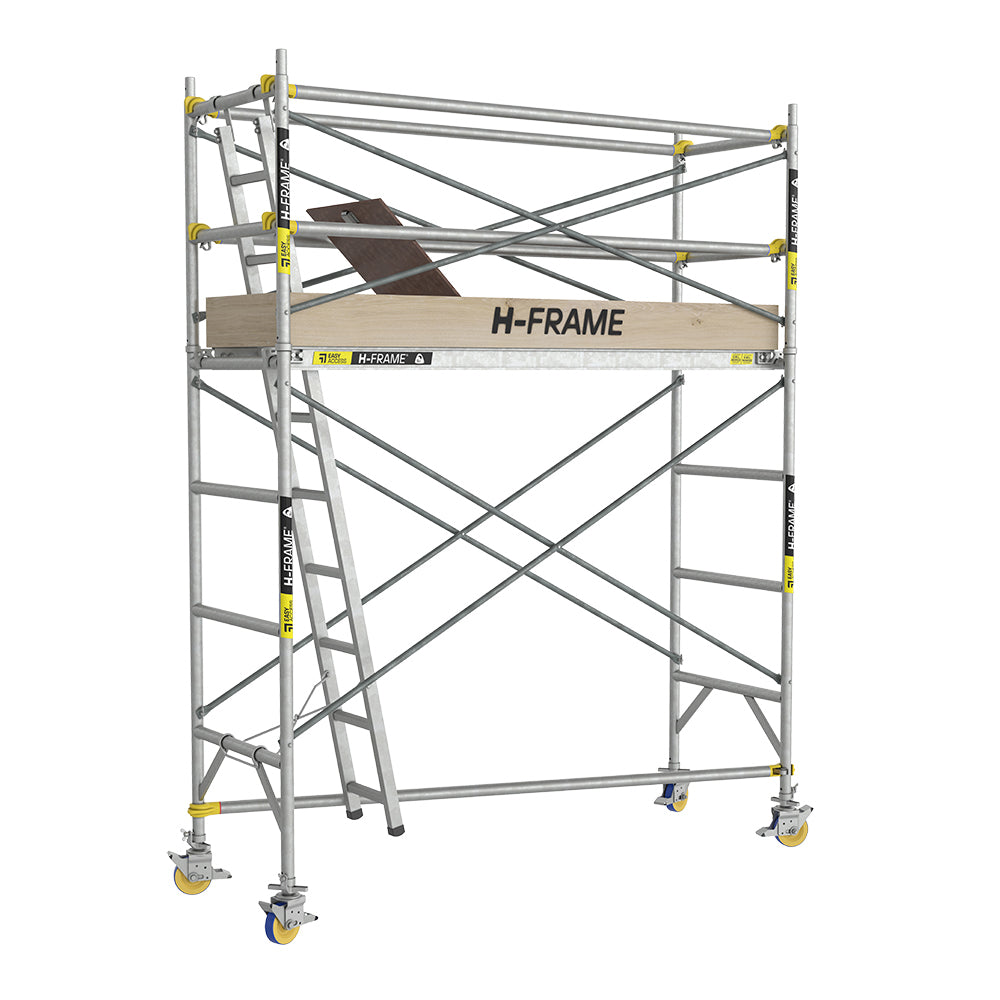

SMT200 Single Level Plus Handrail 2.0m 2.4m

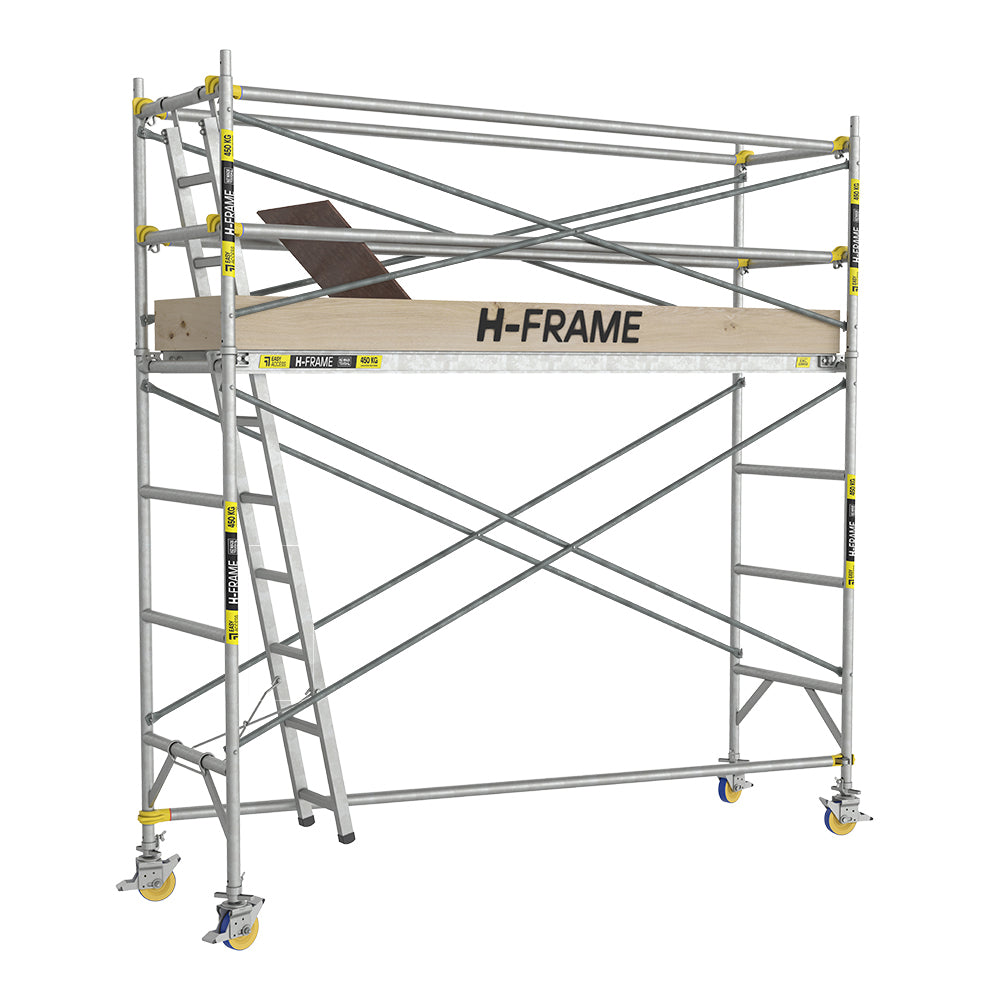

SMT210 Single Level Plus Handrail 2.0m 3.0m

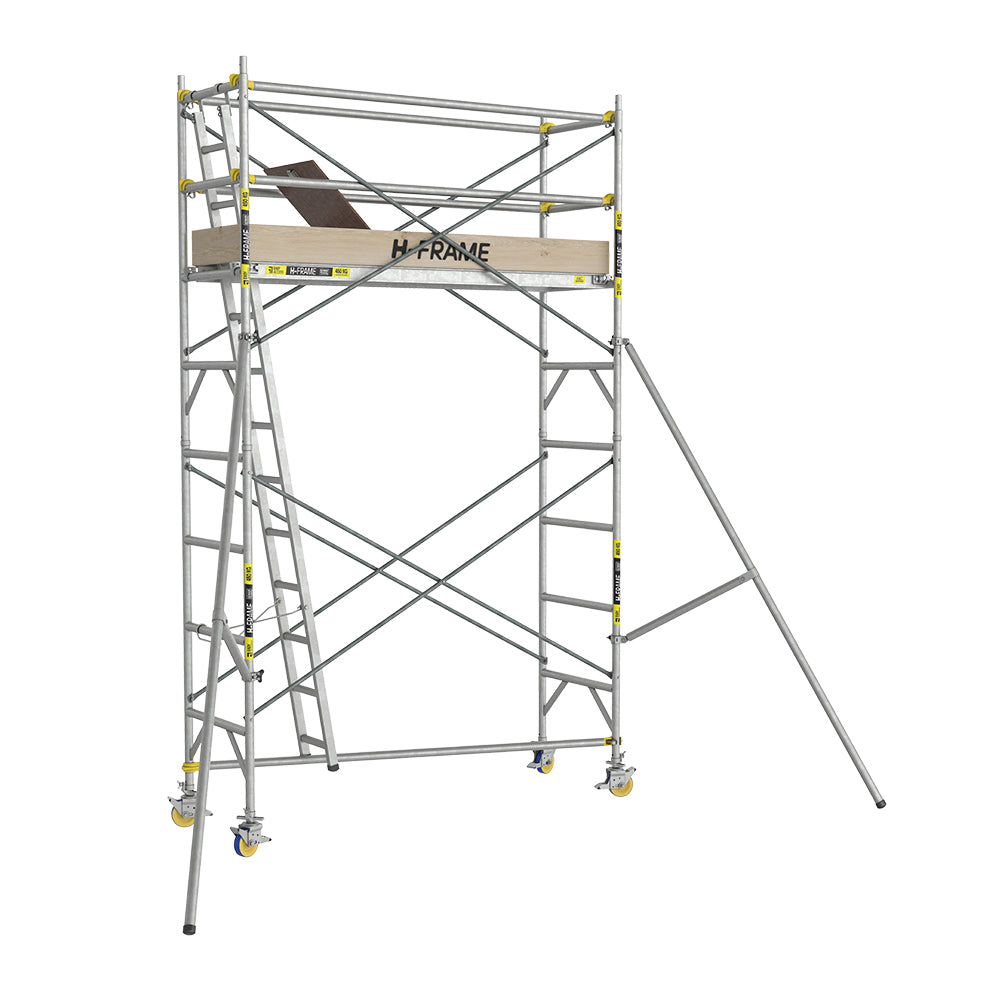

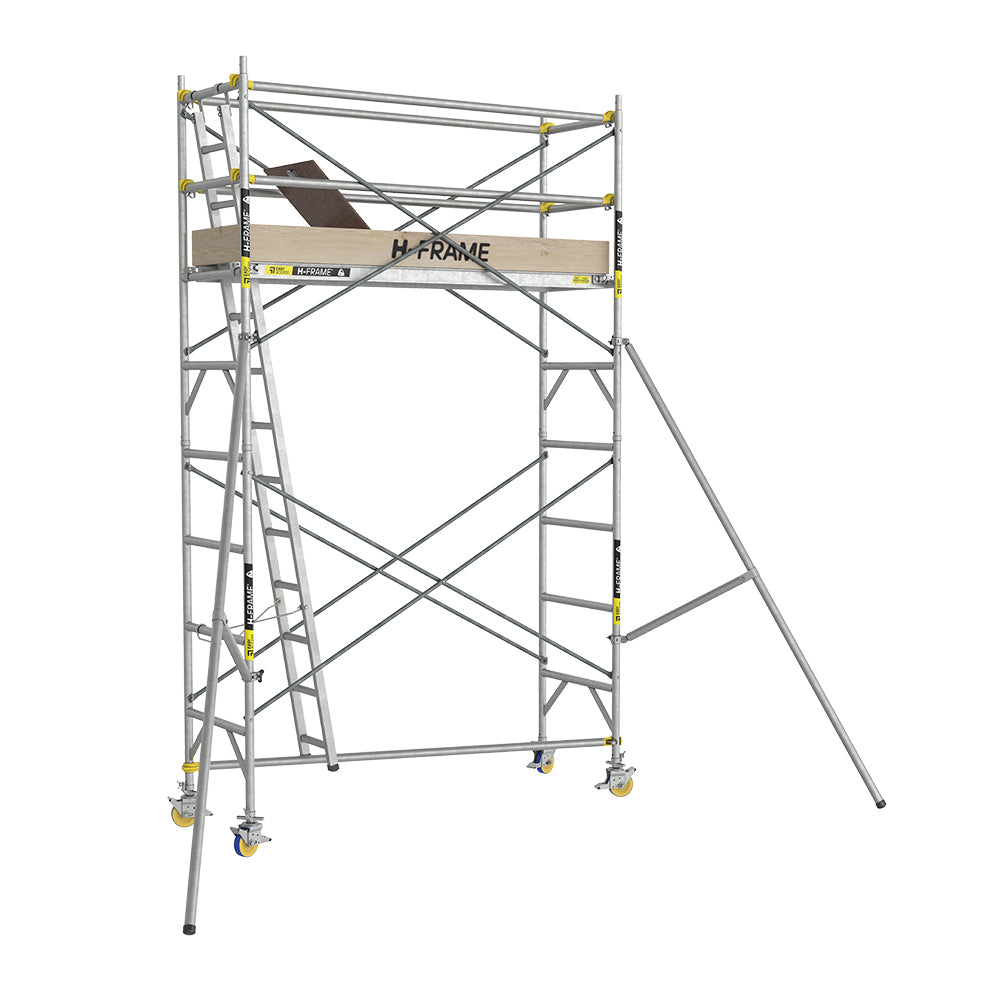

SMT300 Double Level, Includes 2 Outriggers 3.0m 2.4m

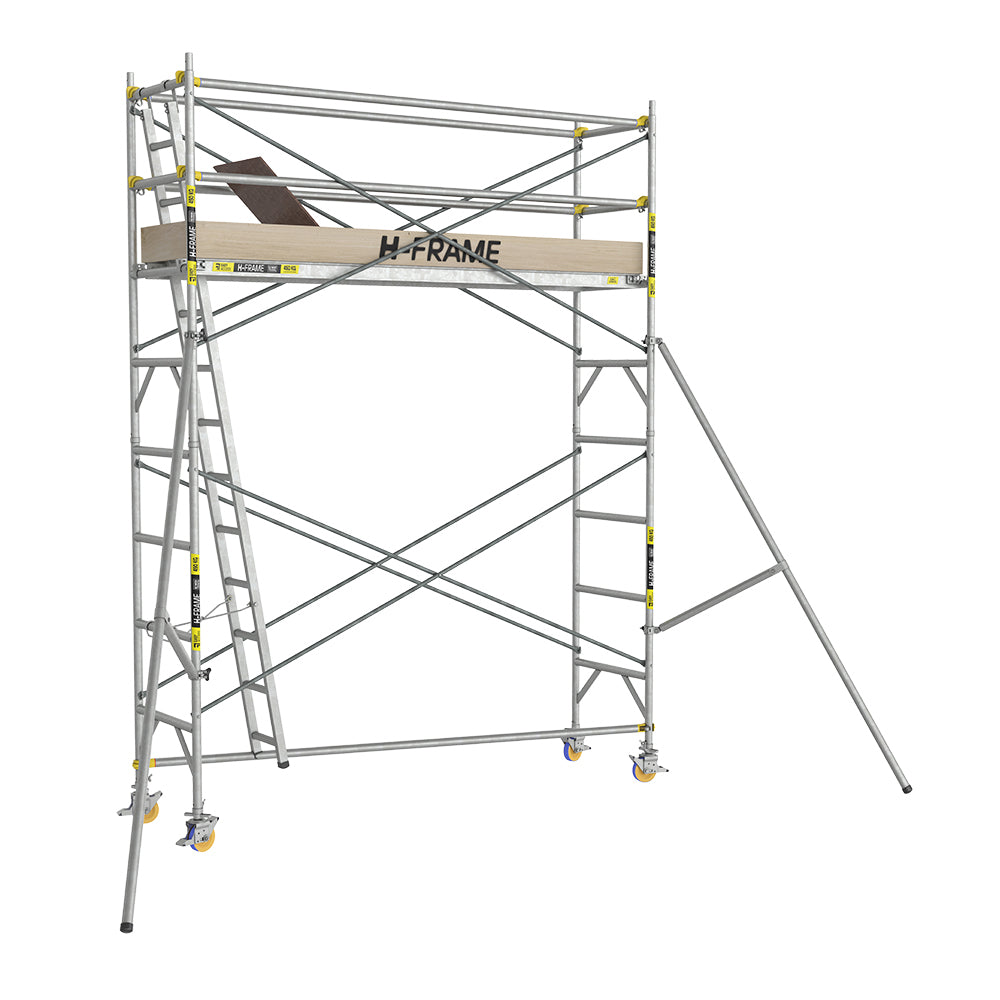

SMT310 Double Level, Includes 2 Outriggers 3.0m 3.0m

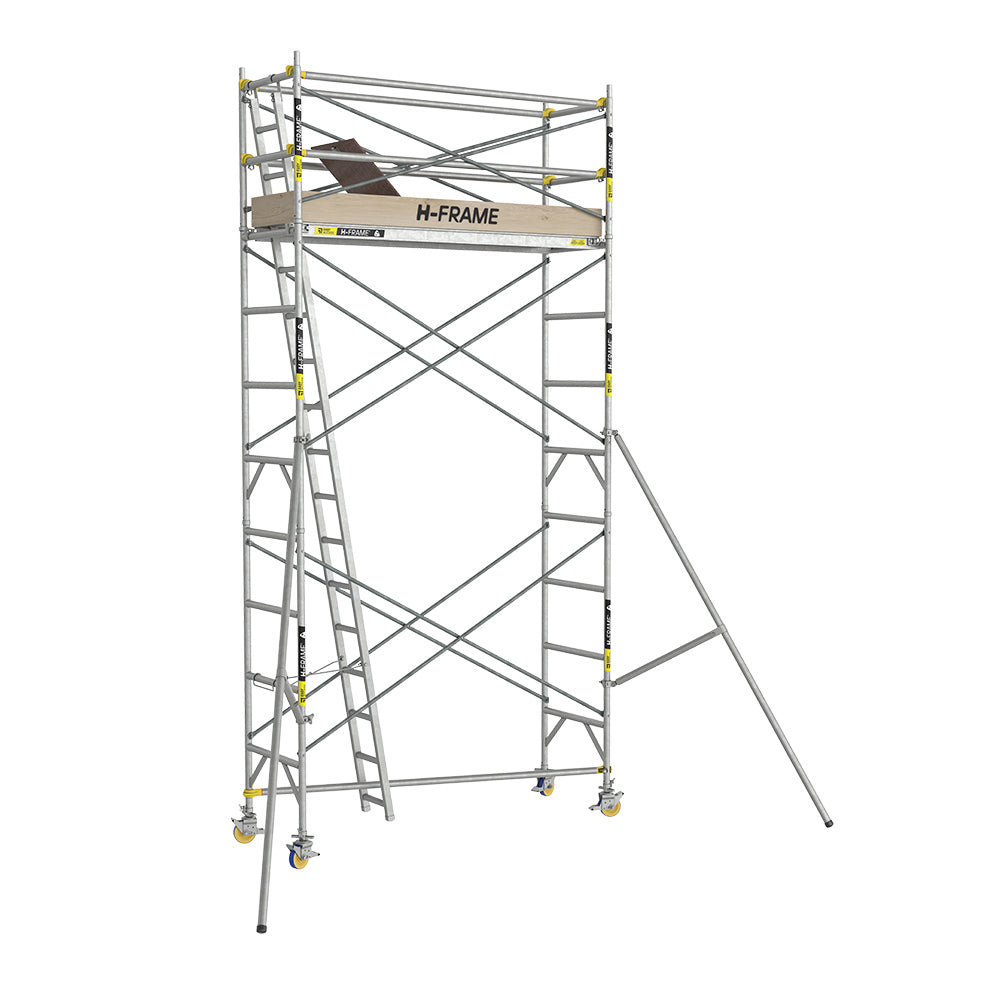

SMT400 Double Level Plus Handrail, Includes 2 Outriggers 4.0m 2.4m

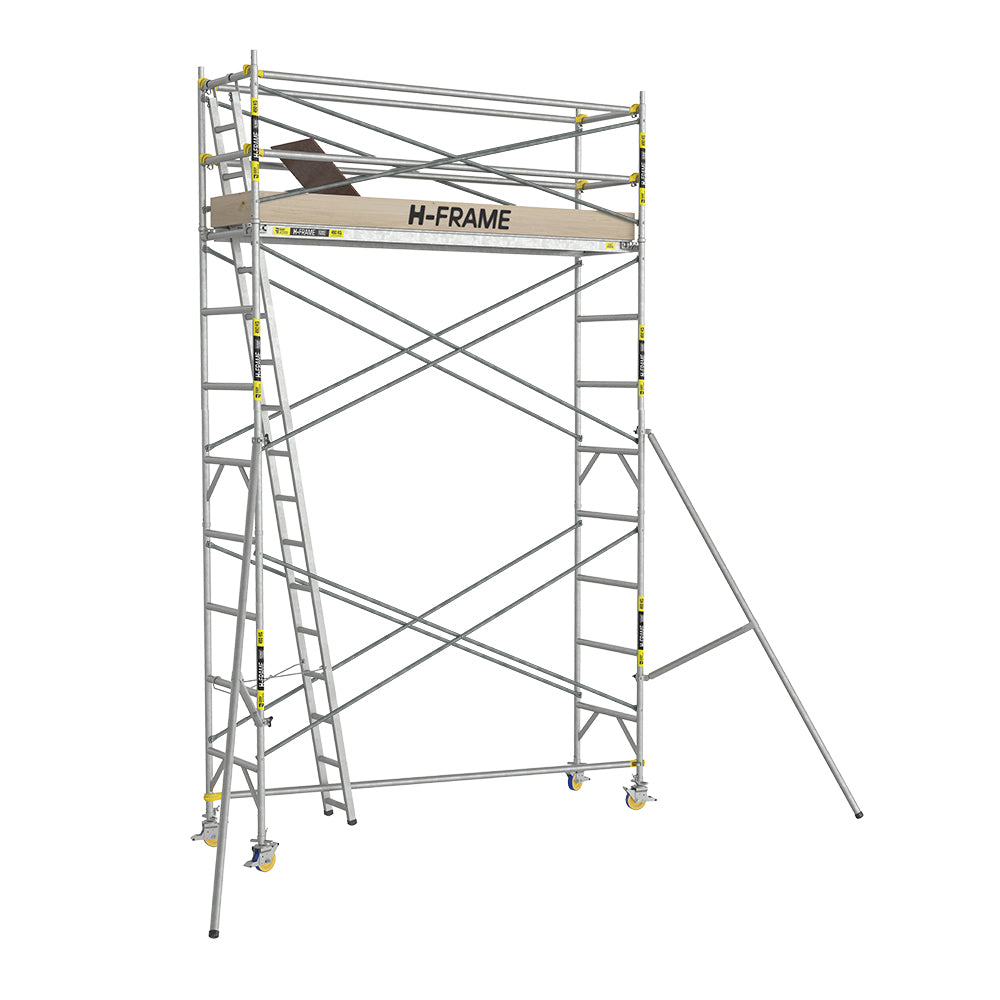

SMT410 Double Level Plus Handrail, Includes 2 Outriggers 4.0m 3.0m

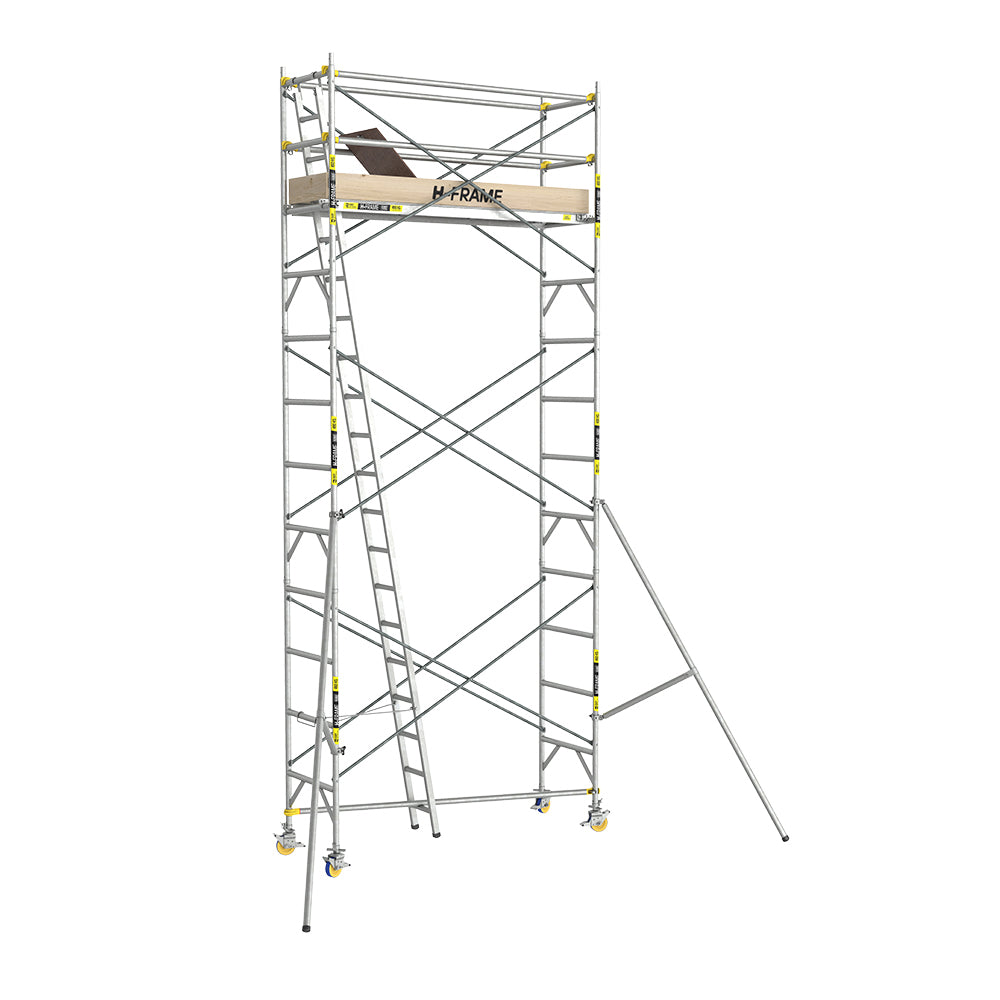

SMT500 Triple Level, Includes 2 Outriggers 5.0m 2.4m

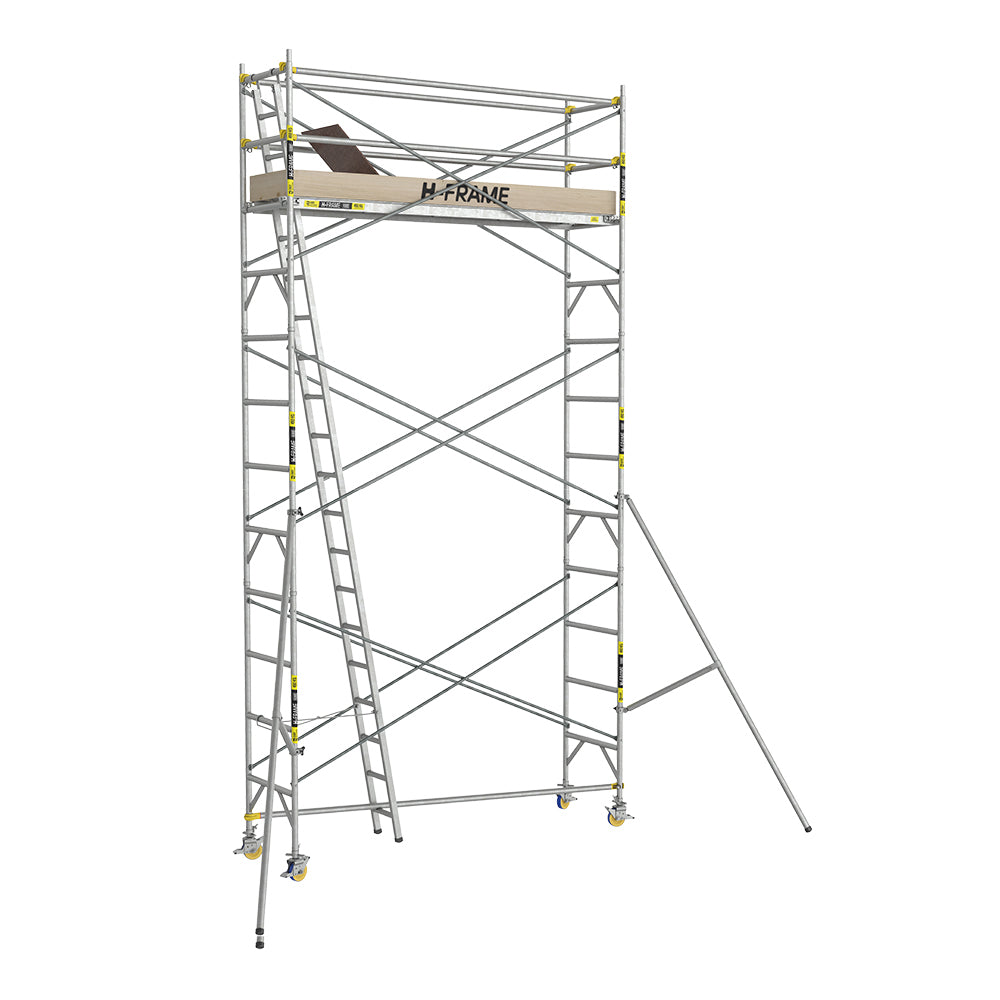

SMT510 Triple Level, Includes 2 Outriggers 5.0m 3.0m
