Double Width (1.37m) H Frame Platform with Steel Scissor Bracing

SKU: FMT200
Levels 2m Platform Height
Width 2.4m Long
Subtotal: $0.00
Icon_welded_strong
icon-colour-coded
icon-outriggers-toeboards
icon-made_in_nz
icon-compliance_1576
icon-900kg_load
icon-450kg_load_new

H-Frame Mobile Scaffold is a heavy-duty NZ-made system built for professionals. It features extra-thick aluminium frame walls, fully welded construction, and steel scissor bracing for fast, secure assembly. Available in multiple pack sizes and individual components for easy expansion. The 2.4mL platforms boast an impressive 900kg load rating (450kg per platform) with the 3.0mL platforms having a 450kg load rating (225kg per platform). Outriggers and toeboards are included where required, and all packs come with a scaffold ladder, the safest way to climb. H-Frame exceeds AS/NZS 1576.1 standards.

Features & Benefits
  • NZ's Versatile Large Mobile Scaffold Range
  • Fully Welded Lightweight and high tensile aluminium - strong, lightweight & robust
  • 2.4mL Platforms 900kg SWL (450kg per platform)
  • 3.0mL Platforms 450kg SWL (225kg per platform)
  • Extra-thick aluminium frame walls for added strength and durability
  • Scaffold ladder included; the safest way to climb a mobile scaffold.
  • Includes all components to be compliant. Brace, Toeboards
  • Simple colour coded componentry - user-friendly assembly
  • Fast and simple assembly
  • Outriggers & Toeboards are included when required for compliance
  • Large 200mm diameter robust castors - easy to move
  • Very affordable & makes you money - no more scaffold hire bills. Hire out your own scaffold instead!
  • Non-slip birch plywood platforms
  • Adjustable castors - 350mm adjustment
  • 2.4-3.0mL Platform
  • Double Width Platform
  • Steel Scissor Bracing

Downloads

Component List File
Share This Product
  • Description
  • SIZE

The H-Frame Scaffold Range is our original heavy-duty mobile scaffold, built tough for adaptability and long-term durability. Proudly made in New Zealand, this versatile system is trusted by professionals nationwide for industrial and commercial access needs. Constructed with extra-thick aluminium frame walls and fully welded joints, H-Frame delivers excellent strength and stability on site. Galvanized steel scissor bracing provides strong structural support and installs quickly, making setup efficient and secure without the need for complex assembly. Large 200mm diameter castors allow for smooth mobility and feature 350mm of adjustable height, ensuring stability on uneven surfaces. The system is available in multiple pack sizes and individual components, allowing you to expand or customize your scaffold as needed. All packs come with a scaffold ladder, the safest way to climb a mobile scaffold, and include outriggers and toeboards where required for full AS/NZS 1576.1 compliance. The 2.4mL platforms boast an impressive 900kg load rating (450kg per platform) with the 3.0mL platforms having a 450kg load rating (225kg per platform). For a reliable, heavy-duty scaffold that’s built to perform, the H-Frame Range stands a step above the rest.

Code Description Platform Height Length Width

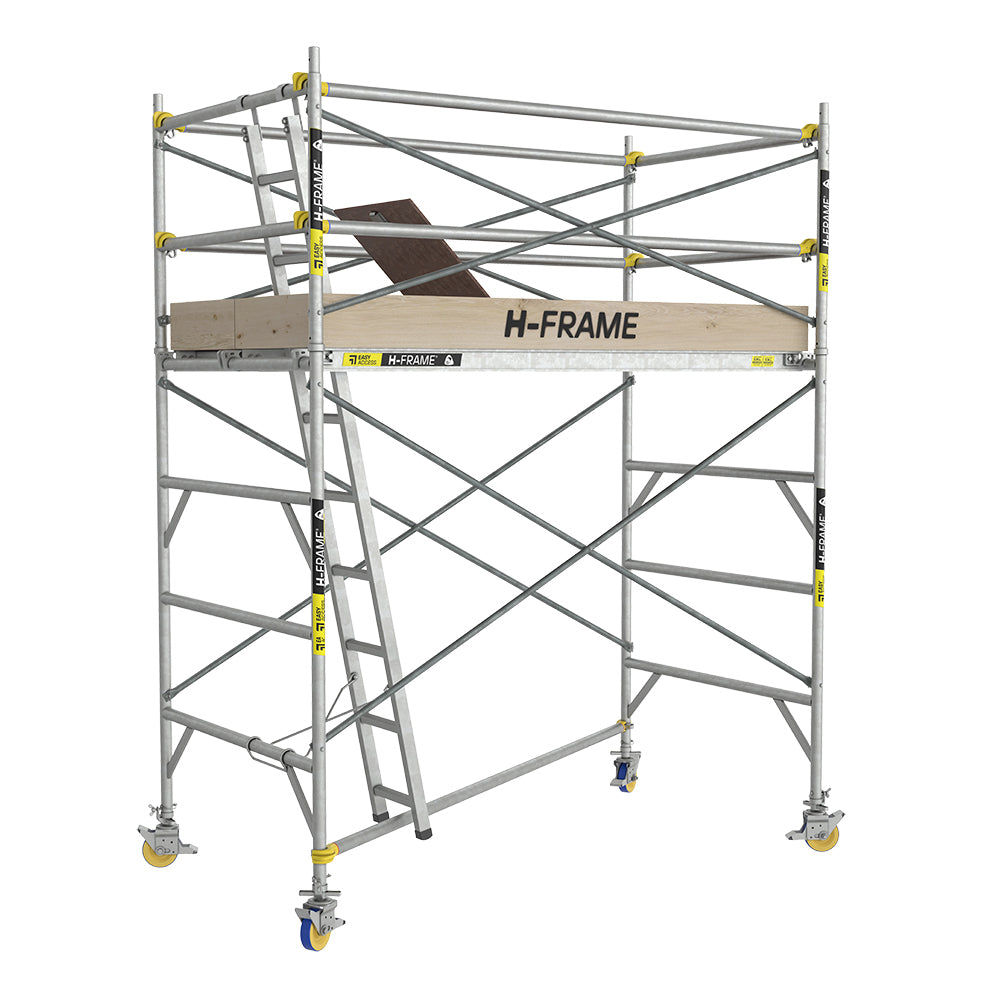

FMT200 Single Level Plus Handrail 2.0m 2.4m 1.37m double width platform

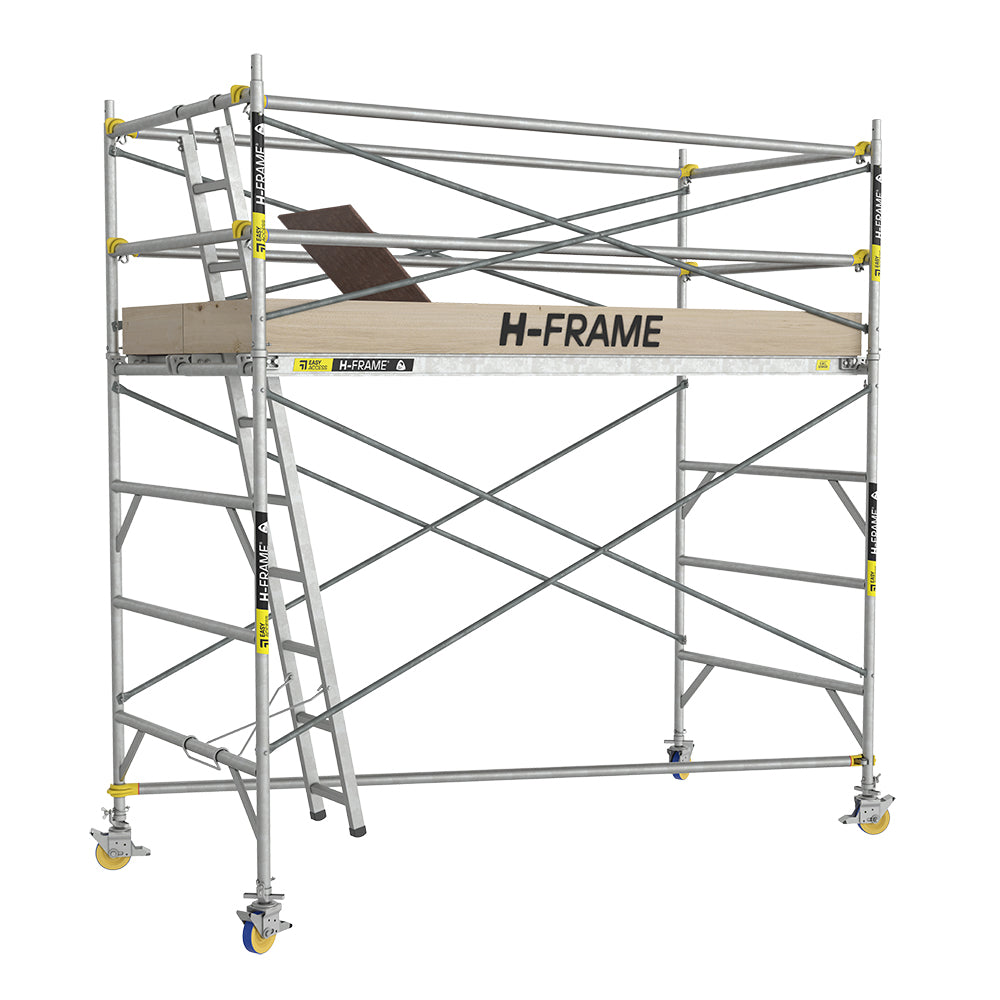

FMT210 Single Level Plus Handrail 2.0m 3.0m 1.37m double width platform

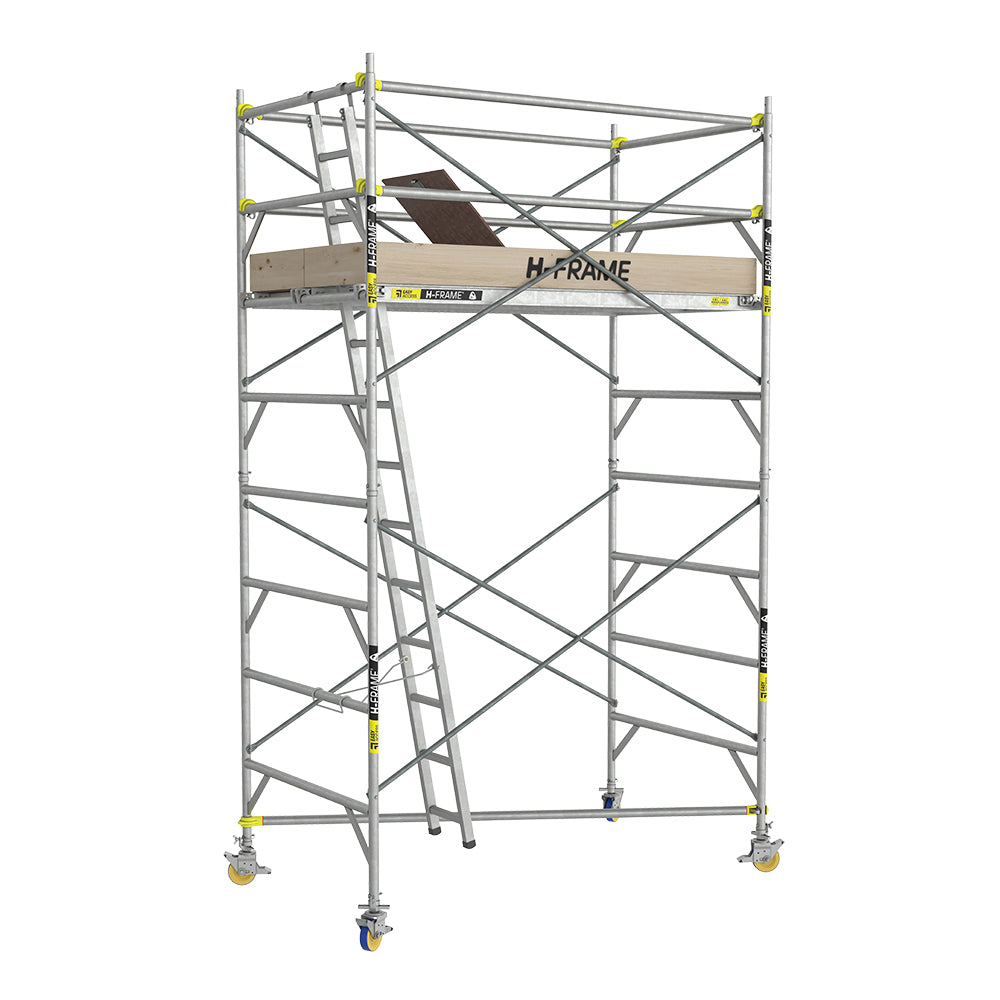

FMT300 Double Level 3.0m 2.4m 1.37m double width platform

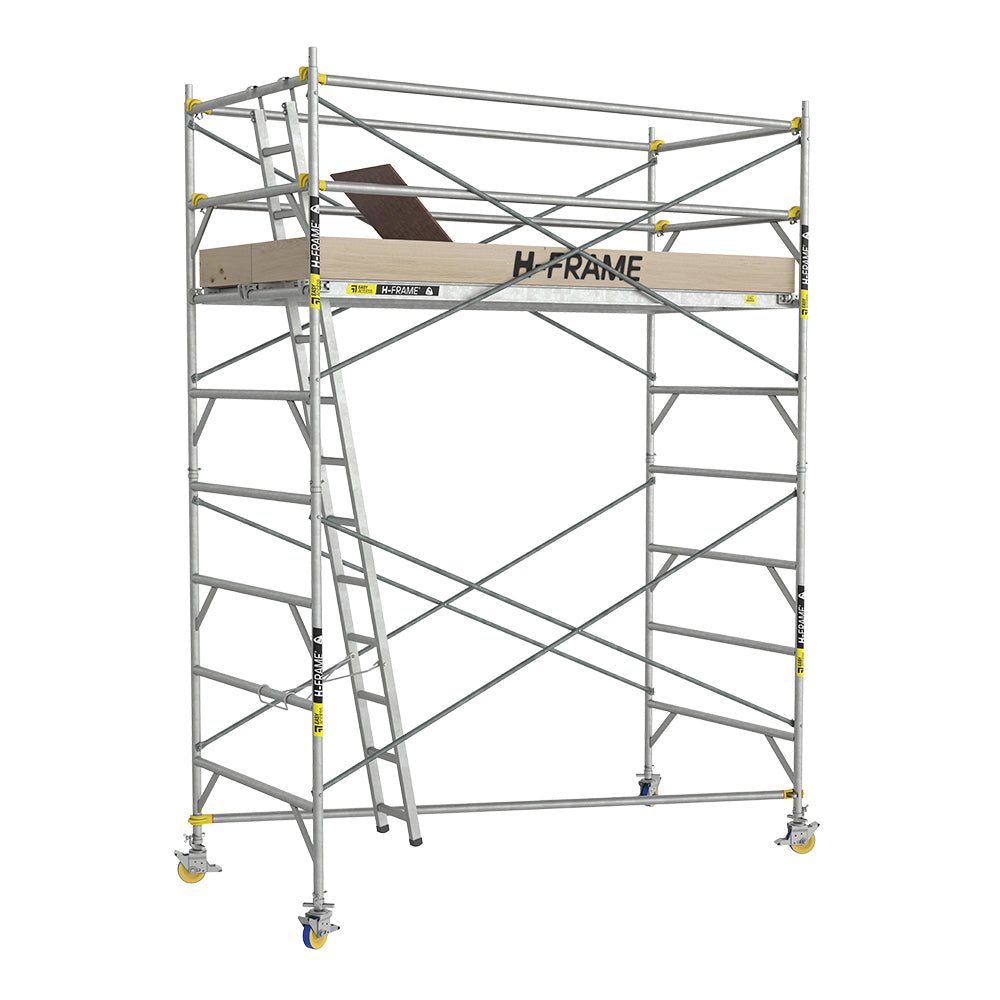

FMT310 Double Level 3.0m 3.0m 1.37m double width platform

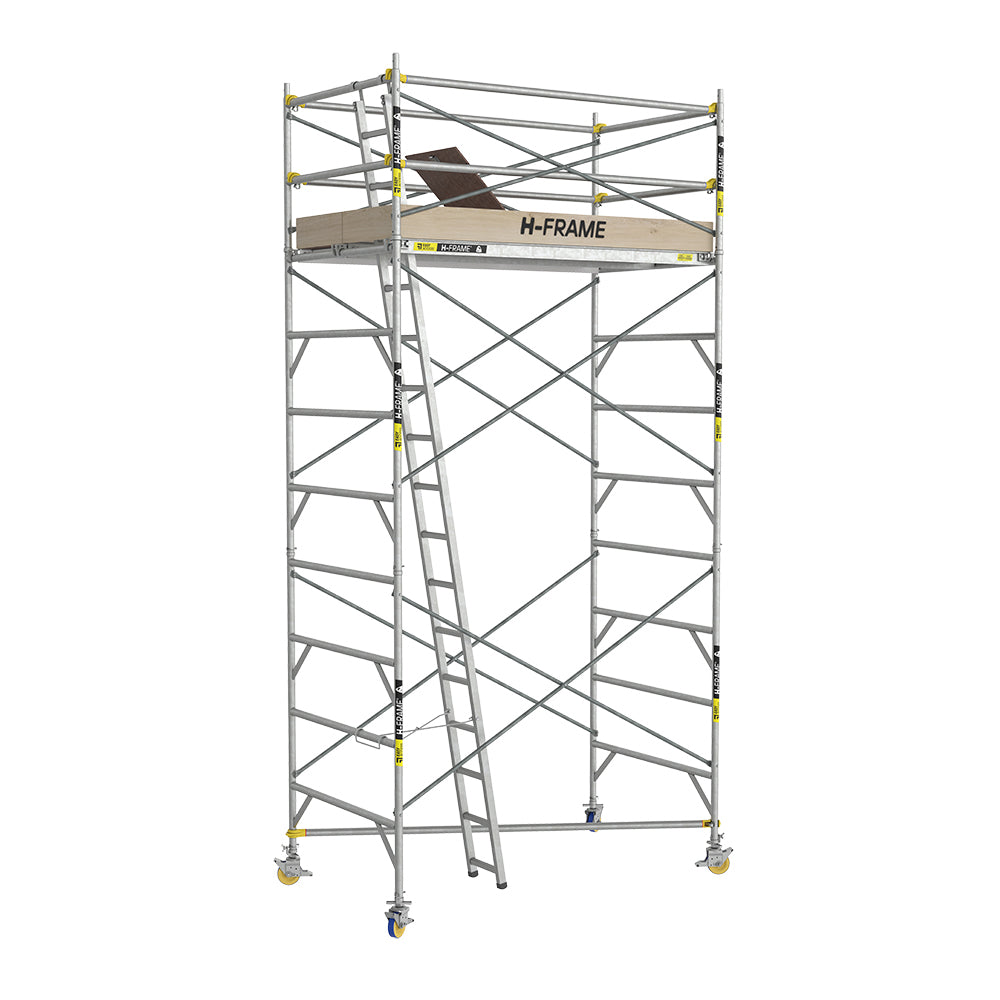

FMT400 Double Level Plus Handrail 4.0m 2.4m 1.37m double width platform

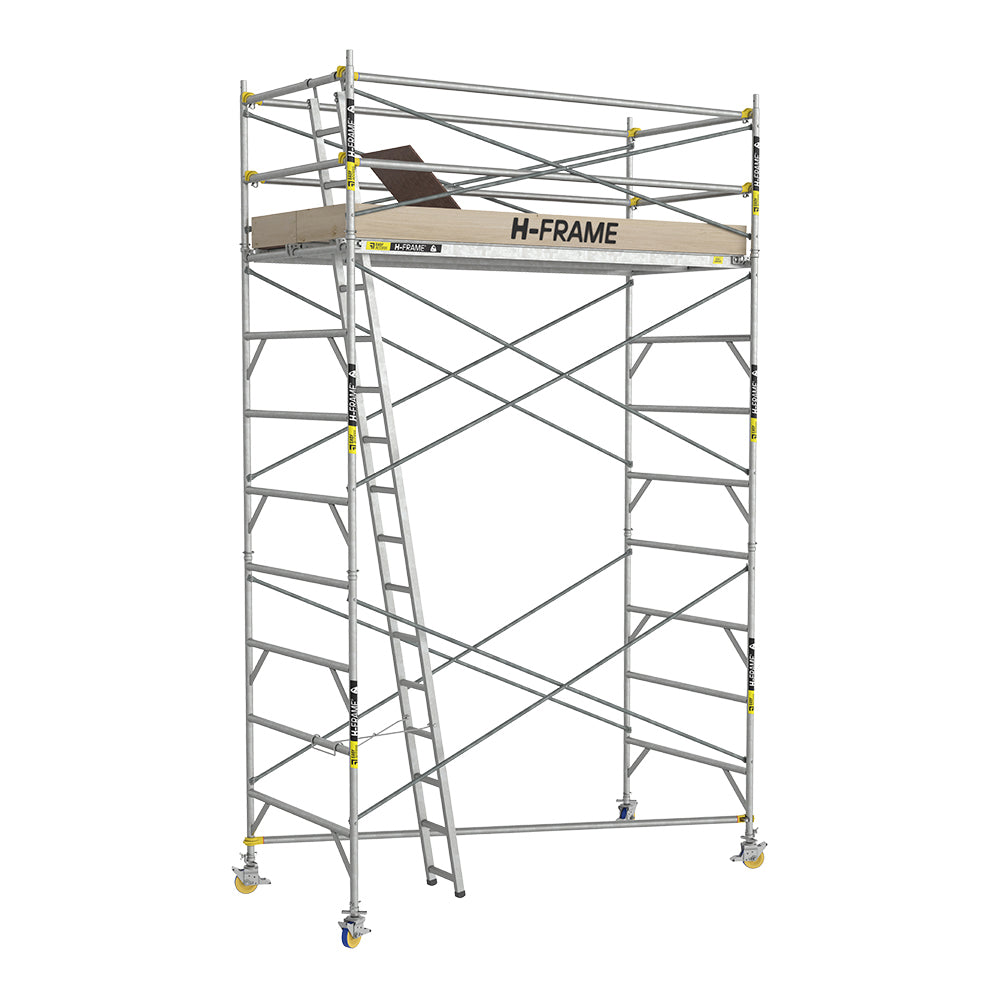

FMT410 Double Level Plus Handrail 4.0m 3.0m 1.37m double width platform

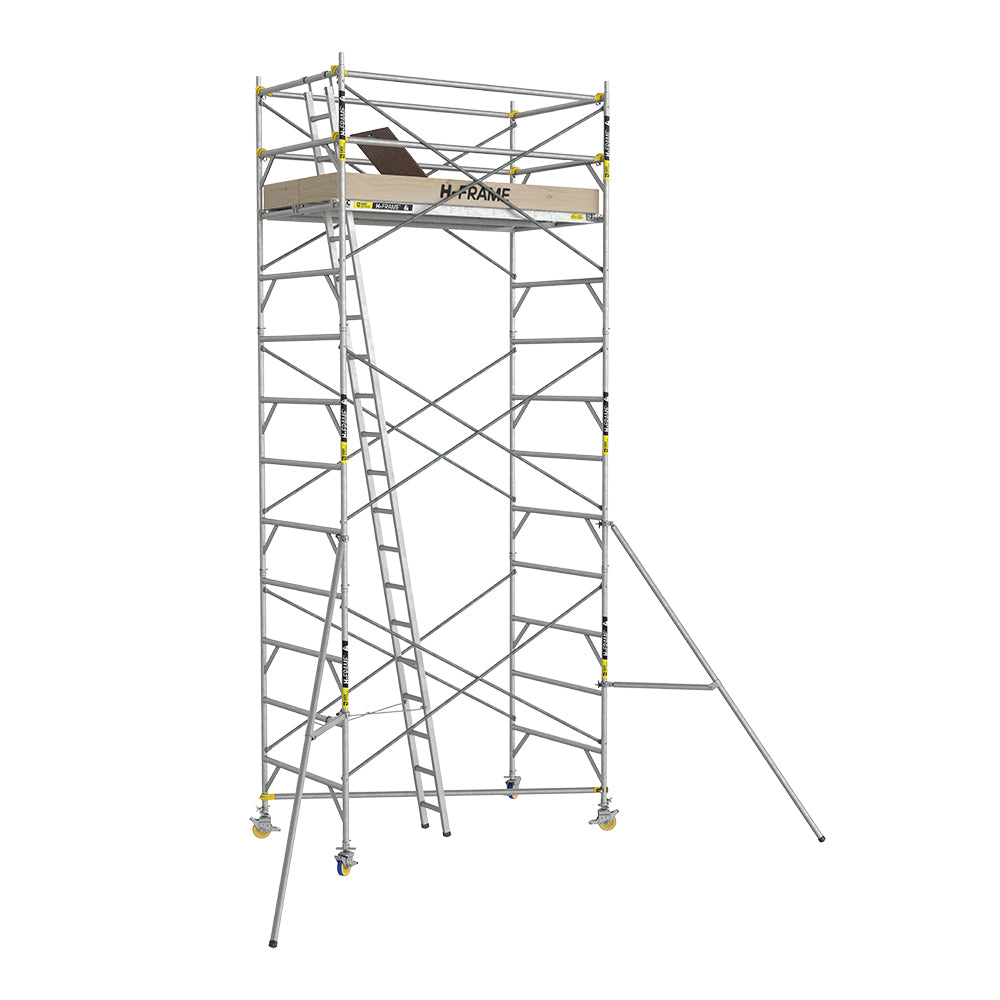

FMT500 Triple Level, Includes 2 Outriggers 5.0m 2.4m 1.37m double width platform

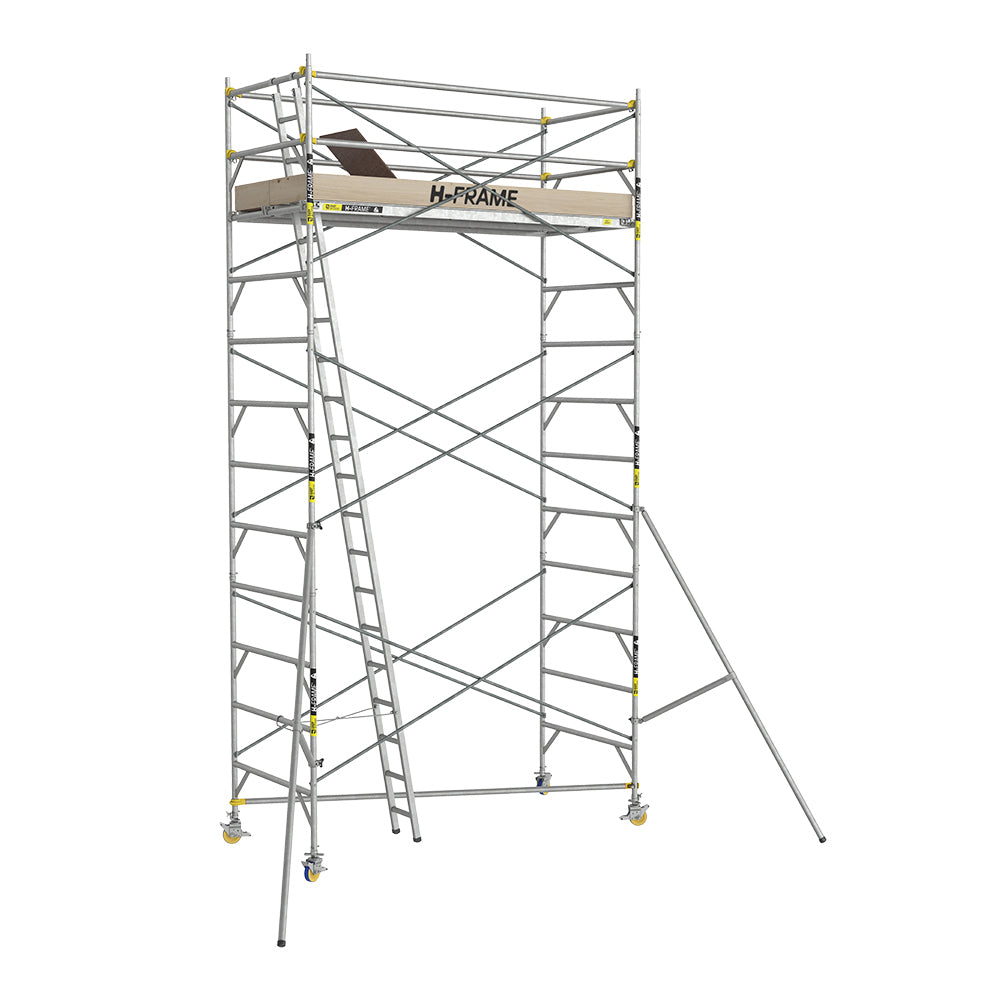

FMT510 Triple Level, Includes 2 Outriggers 5.0m 3.0m 1.37m double width platform
